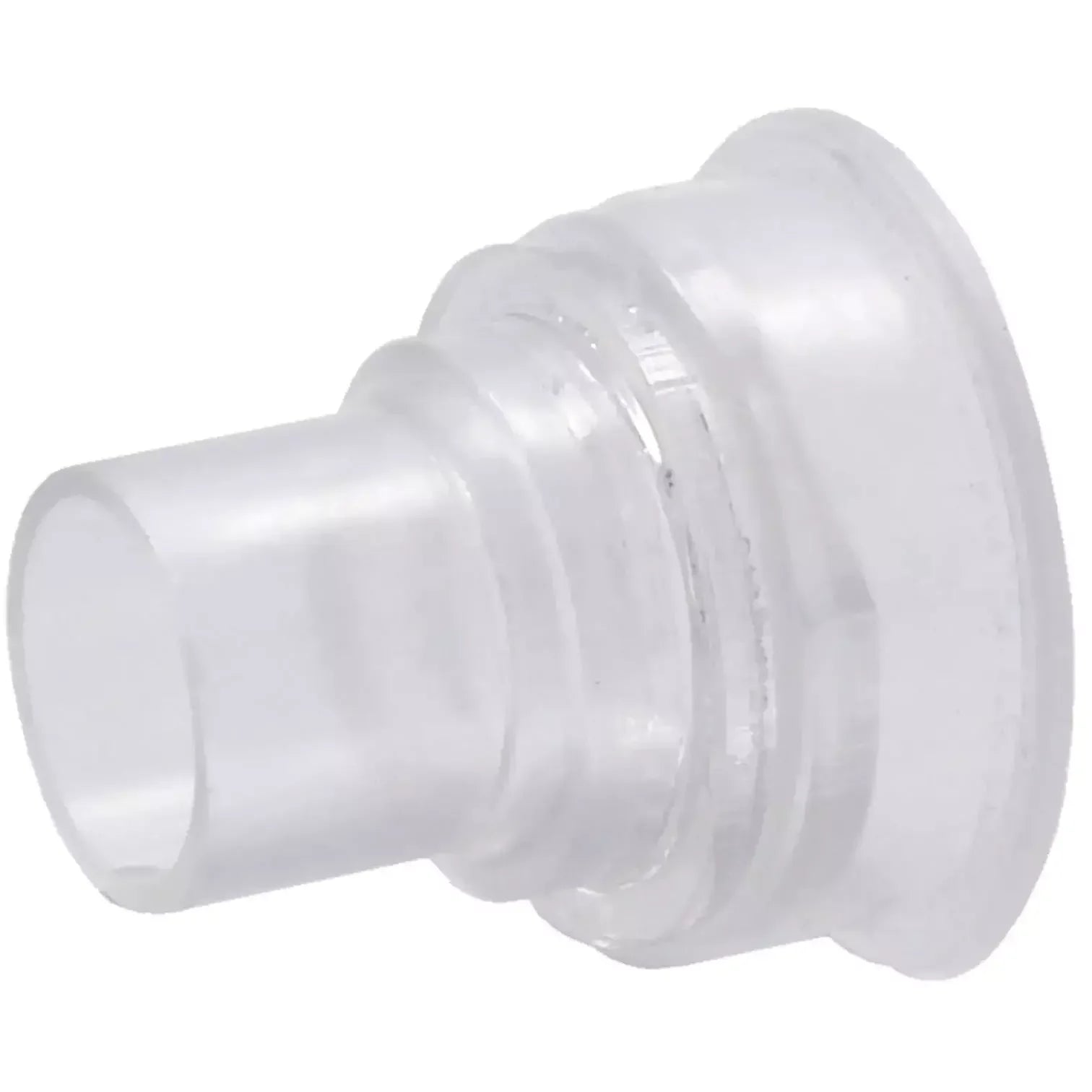

Basin hose connector 27mm – 14, 16, 20 mm – transparent

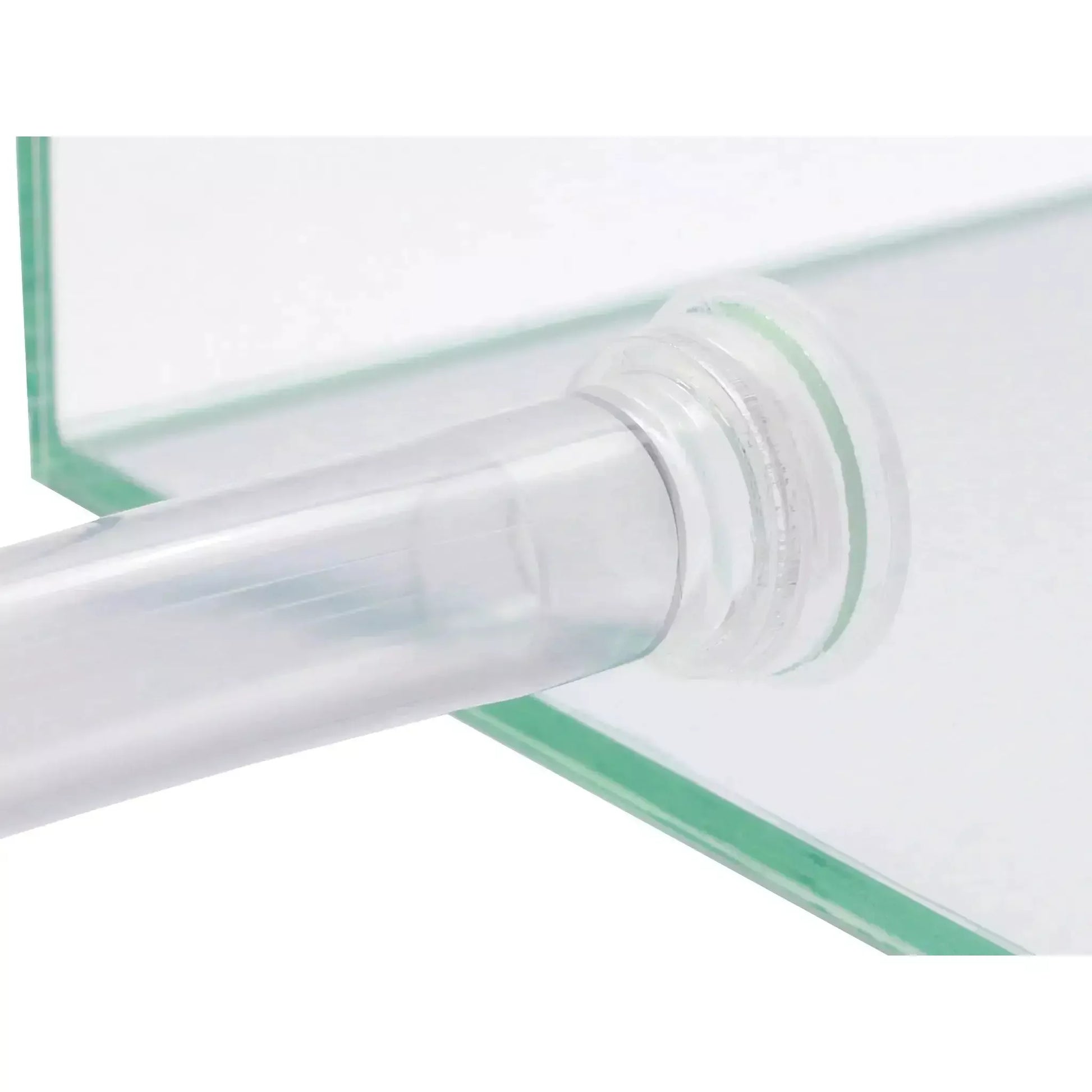

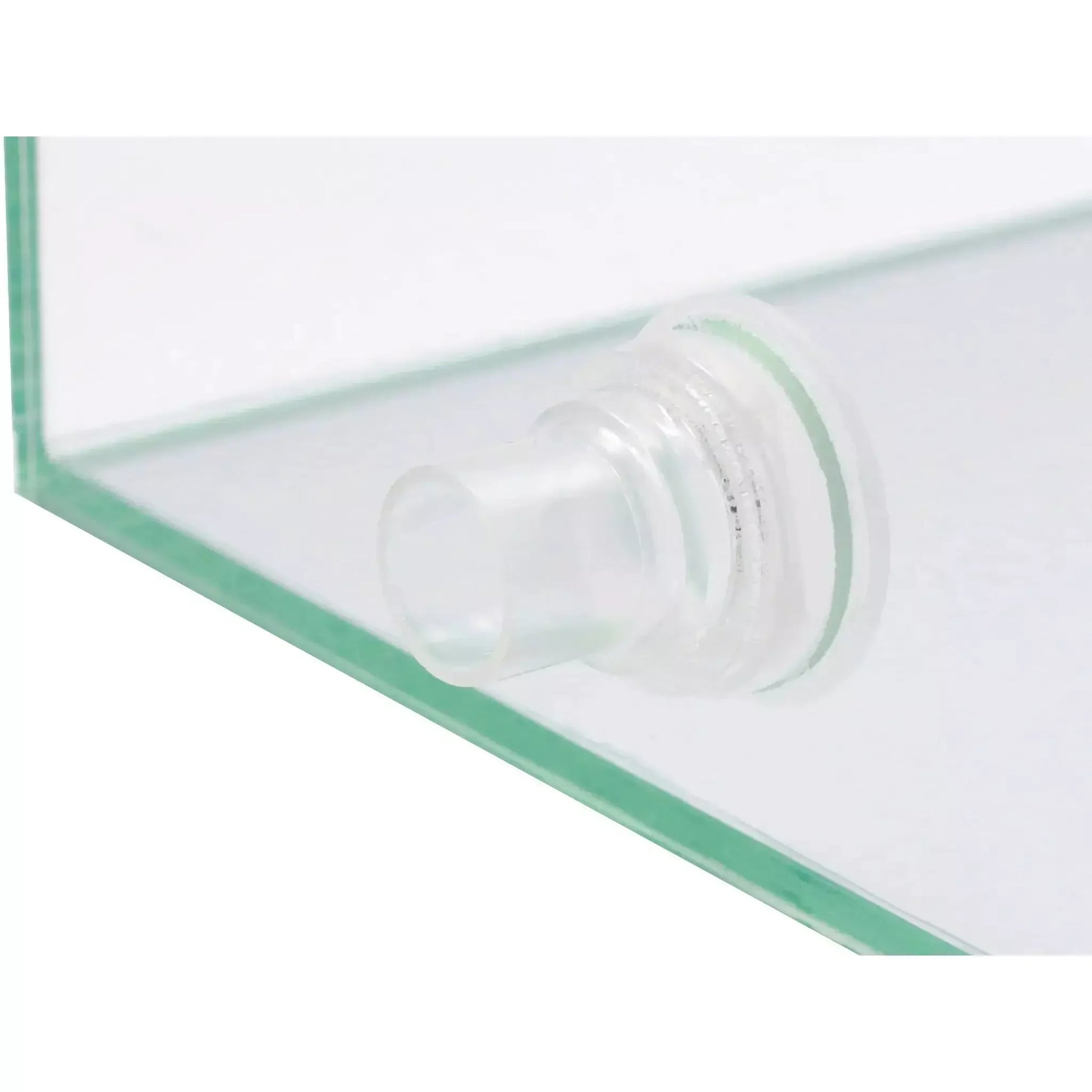

This basin connector, will be plugged through the 27mm hole with a glass wall thickness of 4mm. A clamping ring fixes the connector to the glass basin. Tubing with 14mm outer diameter or 16mm or 20mm inner diameter can be attached to the other end of the bushing.

Dimensions:
Inner diameter = 14mm
Outer diameter = 16mm (first stage), 20mm (second stage)
Length = 36mm

Connection:
Basin : Fits into 27mm (3/4″) holes with a wall thickness of 4mm!
Hoses: 14/10-hose is inserted tightly into the socket 14mm
20/16 tubing is tightly fitted on the first 16mm step
22/18-hose is fixed on the second 20mm-step
24/20-hose is loosely fitted on the second 20mm step
